EGR COOLER REMOVAL/INSTALLATION [MZR-CD 2.2]

id0116f2099000

1.  Disconnect the negative battery cable. (See ENGINE COOLANT REPLACEMENT [MZR-CD 2.2].)

2.  Remove the engine cover. (See ENGINE COOLANT REPLACEMENT [MZR-CD 2.2].)

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR-CD 2.2].)

4.  Remove the air cleaner and air inlet hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2].)

5.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

6.  Remove the air inlet pipe and turbocharger air outlet pipe. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2].)

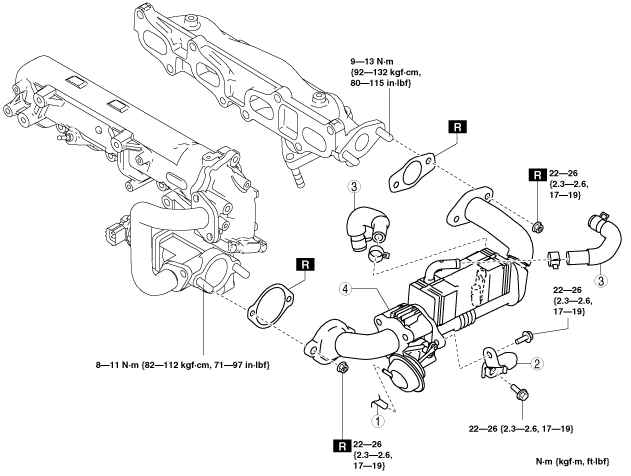

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

am6zzw00005718

1	Vacuum hose
2	EGR cooler bracket
3	Water hose
4	EGR cooler and EGR cooler bypass valve component
