GENERATOR DISASSEMBLY/ASSEMBLY [MZR 1.8, MZR 2.0, MZR 2.5]

id0117c8800400

Caution

• Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

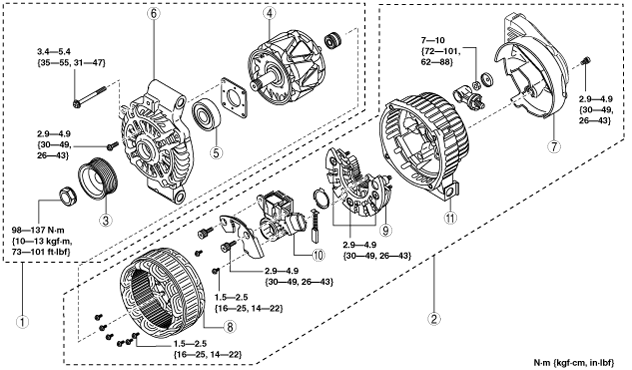

am6zzw00007002

1

Rotor component

2

Stator coil component

3

Pulley

4

Rotor

5

Front bearing

6

Front cover

7

Heat insulator

8

Stator coil

9

Rectifier

10

Regulator component

11

Rear cover

1	Rotor component
2	Stator coil component
3	Pulley
4	Rotor
5	Front bearing
6	Front cover
7	Heat insulator
8	Stator coil
9	Rectifier
10	Regulator component
11	Rear cover
