GENERATOR REMOVAL/INSTALLATION [MZR-CD 2.2]

id0117f3800200

Warning

•  Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

•  When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

1.  Disconnect the negative battery cable.

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZR-CD 2.2].)

3.  Remove the splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

4.  Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

5.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZR-CD 2.2].)

6.  Disconnect the fuel pressure sensor connector.

7.  Disconnect the boost sensor connector.

8.  Remove in the order indicated in the table.

9.  Install in the reverse order of removal.

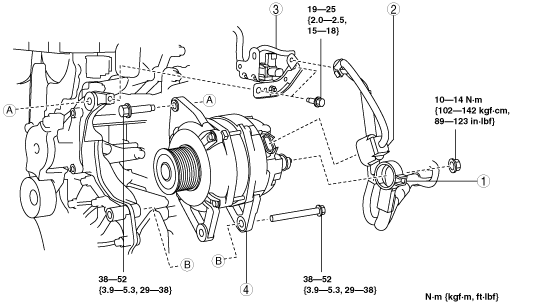

am6zzw00007036

1	Terminal B cable
2	Generator connector
3	Solenoid valve and bracket component
4	Generator (See Generator Installation Note.)

Generator Installation Note

1.  To facilitate the installation of the generator to the engine, grasp the spacer in the bolt installation hole using pliers and push it down to the nut side.

am6zzw00004407

2.  Install the generator to the engine.

3.  Tighten bolts temporarily.

4.  Tighten bolts to the specified tightening torque.
