CRUISE CONTROL SWITCH INSPECTION [MZR-CD 2.2]
id0120f4800100
1. Disconnect the negative battery cable and wait for 1 min or more.
2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
3. Disconnect the clock spring connector (part wiring harness-side).

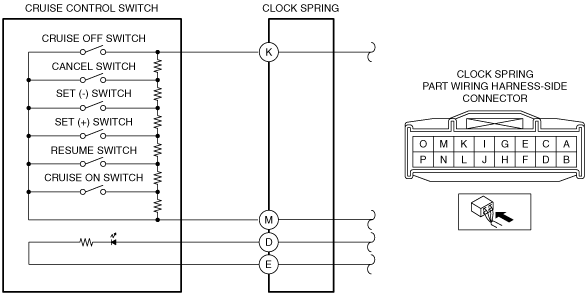

4. Inspect for resistance and continuity between clock spring connector terminals K and M (part wiring harness-side) using a tester.
|
Switch Condition |
Resistance (ohm) |
|---|---|
|
Cruise OFF switch held at on
|
Continuity
|
|
CANCEL switch held at on
|
Approx. 120
|
|
SET (−) switch held at on
|
Approx. 300
|
|
SET (+) switch held at on
|
Approx. 600
|
|
RESUME switch held at on
|
Approx. 1,110
|
|
Cruise ON switch held at on
|
Approx. 2,110
|
|
Neutral
|
Approx. 4,310
|
am6zzw00006021
|
5. Apply battery positive voltage to clock spring connector terminal D and terminal E (part wiring harness-side) to ground.
am6zzw00006022
|
6. Verify that the LED illuminates.
