ENGINE OIL DATA RESET [MZR-CD 2.2]

id0140f2444700

Using M-MDS

1.  Connect the M-MDS (IDS) to the DLC-2.

am6zzw00000122

2.  After the vehicle is identified, select the following items from the initial screen of the IDS.

1.  Select the “Powertrain”.

2.  Select the “Data Reset”.

3.  Then, select the “Engine Oil” and perform the data reset according to directions on the IDS screen.

4.  Retrieve DTC’s using the IDS, then verify if DTCs are present.

•  If a DTC is present, perform the applicable DTC inspection.

Without using M-MDS

1.  Switch the ignition to ON.

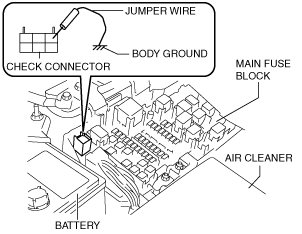

2.  Ground the test terminal using a jumper wire.

am6zzw00007718

3.  Repeatedly depress and release the accelerator pedal fully five times.

Note

•  When the engine oil data reset is completed, the glow indicator light flashes 5 times.
