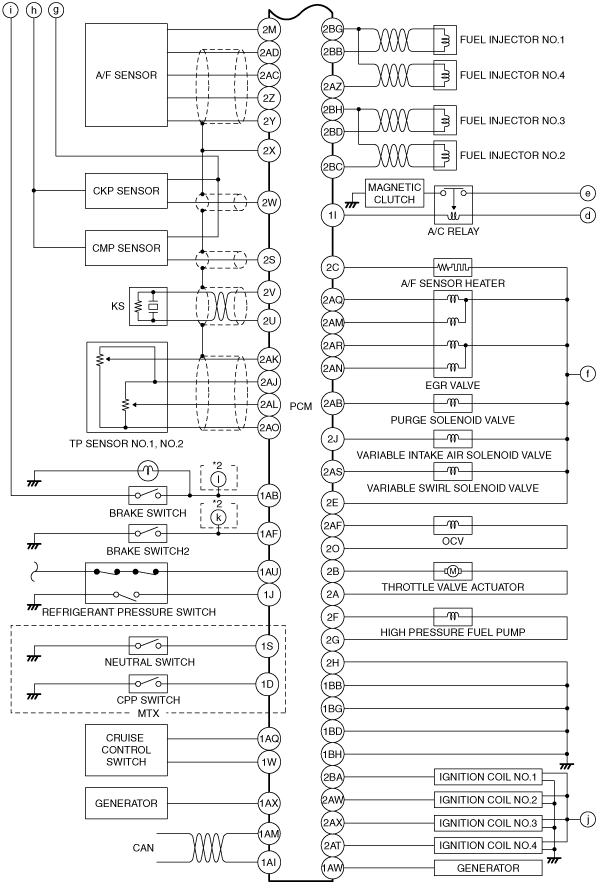

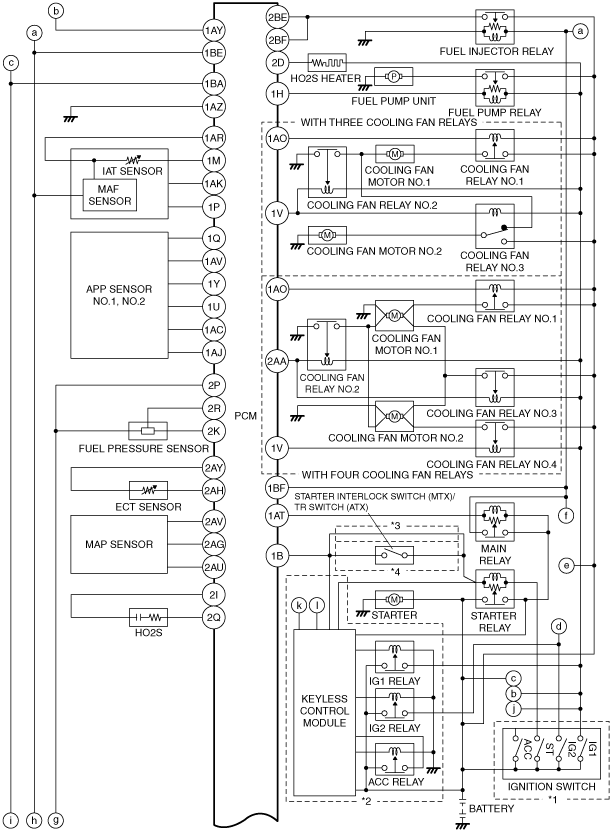

ENGINE CONTROL SYSTEM WIRING DIAGRAM [MZR 2.0 DISI]
id0140j3100400
*1 :W ithout advanced keyless entry and push button start system
*2 :With advanced keyless entry and push button start system
*3 :W ithout starter interlock switch (MTX)
*4 :With starter interlock switch (MTX) or ATX
