NEUTRAL SWITCH INSPECTION [MZR 2.0 DISI]

id0140j3800800

1.  Disconnect the negative battery cable.

2.  Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R].)

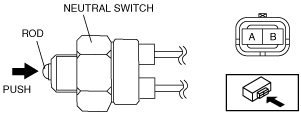

3.  Inspect for continuity between the neutral switch terminals using an ohmmeter.

am6zzw00006972

•  If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R].)

Specification

Measured condition

Continuity
Rod pushed
Continuity detected
Except above
No continuity
