CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI]


id0140j3801500

Caution
•  When replacing the CMP sensor, make sure there is no foreign material on it such as metal shavings. If it is installed with foreign material, the sensor output signal will malfunction resulting from fluctuation in magnetic flux and cause a deterioration in engine control.

1.  Disconnect the negative battery cable. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.0 DISI].)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.0 DISI].)

3.  Disconnect the CMP sensor connector.

4.  Remove the CMP sensor.

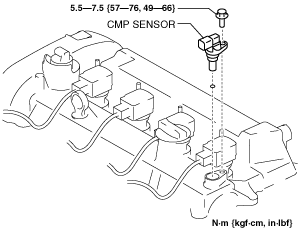

am3zzw00007863

5.  Install in the reverse order of removal.
