REAR STABILIZER REMOVAL/INSTALLATION

id021400800500

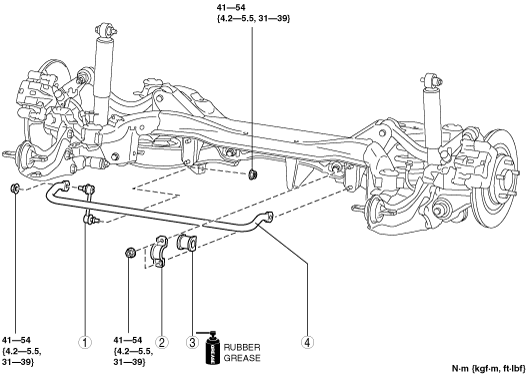

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

am6zzw00000652

Rear Stabilizer Installation Note

1. Install the rear stabilizer so that the identification mark faces to the right side of the vehicle.

am6zzw00001554

Bushing and Stabilizer Bracket Installation Note

1. Install the bushing and stabilizer bracket with the outer side of the identification mark.

am6zzw00002808

2. Tighten the bolts in order indicated in the figure.

am3uuw00000874

1	Stabilizer control link
2	Stabilizer bracket (See Bushing and Stabilizer Bracket Installation Note.)
3	Bushing (See Bushing and Stabilizer Bracket Installation Note.)
4	Rear stabilizer (See Rear Stabilizer Installation Note.)
