REAR LATERAL LINK REMOVAL/INSTALLATION

id021400801200

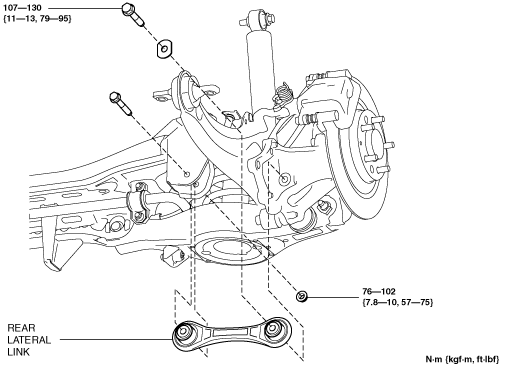

1.  Remove the rear lateral link.

am6zzw00000658

2.  Temporarily install the rear lateral link so that the identification mark faces forward and inside of the vehicle.

am6zzw00001552

3.  Tighten the rear lateral link inner side bolt to the specified torque.

4.  Tighten the rear lateral link outer side bolt to the specified torque using an adjustable wrench while holding the washer in place.

am6xuw00002795

5.  Inspect the rear wheel alignment. (See REAR WHEEL ALIGNMENT.)
