JOINT SHAFT DISASSEMBLY [MZR-CD 2.2]
id0313008010j6

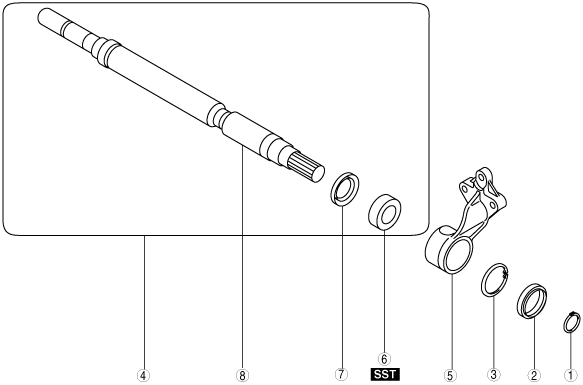

1. Disassemble in the order indicated in the table
am6zzw00003832
|
|
1
|
Clip A
|
|
2
|
Dust seal (RH)
|
|
3
|
Clip B
|
|
4
|
Joint shaft component
|
|
5
|
Bracket
|
|
6
|
Bearing
(See Bearing Disassembly Note.)
|
|
7
|
Dust seal (LH)
|
|
8
|
Joint shaft
|
Joint Shaft Component Disassembly Note
1. Secure the bracket to the vise at the position shown in the figure and remove the joint shaft component using the plastic hammer.
am6zzw00003833
|
Bearing Disassembly Note
1. Remove the bearing from the joint shaft using the SST and a press.
am6zzw00003571
|
