JOINT SHAFT DISASSEMBLY [MZR 1.8, MZR 2.0, MZR 2.0 DISI, MZR 2.5]
id0313008010j8

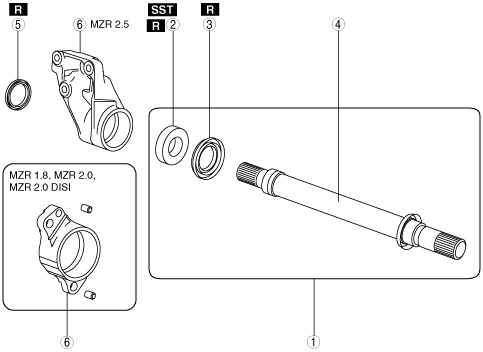

1. Disassemble in the order indicated in the table.
am6zzw00006349
|
|
1
|
Joint shaft component
|
|
2
|
Bearing
(See Bearing Disassembly Note.)
|
|
3
|
Dust seal (LH)
|
|
4
|
Joint shaft
|
|
5
|
Dust seal (RH)
|
|
6
|
Bracket
|
Joint Shaft Component Disassembly Note
1. Secure the bracket to the vise at the position shown in the figure and remove the joint shaft component using the plastic hammer.
am6zzw00006350
|
Bearing Disassembly Note
1. Remove the bearing from the joint shaft using the SST.
am6zzw00003831
|
