JOINT SHAFT ASSEMBLY [MZR-CD 2.2]
id0313008011j6

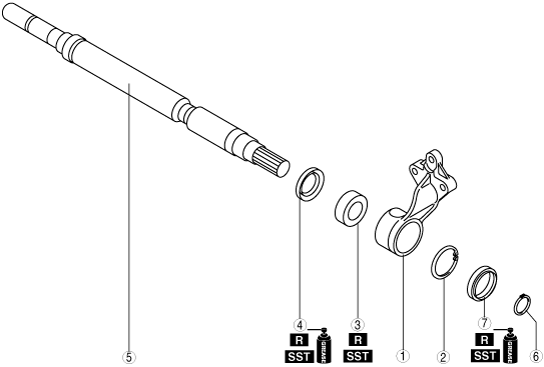

1. Assemble in the order indicated in the table
am6zzw00003572
|
|
1
|
Bracket
|
|
2
|
Clip B
|
|
3
|
Bearing
(See Bearing Assembly Note.)
|
|
4
|
Dust seal (LH)
(See Dust Seal (LH) Assembly Note.)
|
|
5
|
Joint shaft
(See Joint Shaft Assembly Note.)
|
|
6
|
Clip A
|
|
7
|
Dust seal (RH)
(See Dust Seal (RH) Assembly Note.)
|
Bearing Assembly Note
1. Install the bearing using the SSTs and a press.
am6zzw00003573
|
Dust Seal (LH) Assembly Note
1. Apply grease to a new dust seal (LH) lip.
2. Install a new dust seal (LH) using the SSTs, steel plate and a press.
am6zzw00003574
|
Joint Shaft Assembly Note
1. Assemble the joint shaft using the SST, steel plate and a press.
am6zzw00003575
|
Dust Seal (RH) Assembly Note
1. Apply grease to a new dust seal (RH) lip.
2. Assemble a new dust seal (RH) using the SST, steel plate and a press.
am6zzw00003576
|
