ON-BOARD DIAGNOSTIC SYSTEM FUNCTION [DYNAMIC STABILITY CONTROL (DSC)]

id0402b2182100

Malfunction detection function

―  The ABS and brake system warning lights, DSC indicator lights and DSC OFF light illuminate for approx. 3 s when the ignition is switched ON to inspect for open circuits in the lights. At the same time, the fail-safe relay is operated, and the input/output signals of each part are monitored for malfunction diagnosis. After this, the vehicle is accelerated to approx. 6km/h {4 mph} or more from a stop, the pump motor is operated, and malfunction diagnosis is performed again. The input/output signals of each part are then constantly monitored and malfunctions are diagnosed.

Memory function

DTC 7-digit code definition

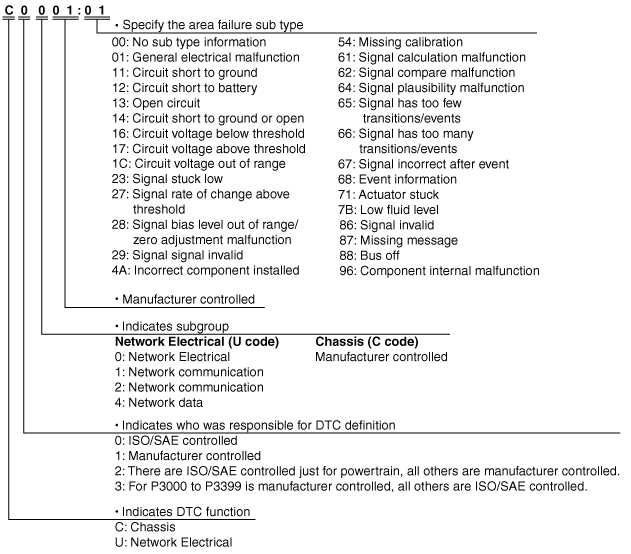

•  When related systems or components have failed, the CM stores the DTC of the malfunctioning part in the CM memory, and allows for the retrieval of the store data using scanning tool when necessary. The DTCs are indicated using seven digits. Each digit indicates the following.

am6zzn00001699

Fail-safe function

Warning

•  If EBD control is prohibited the rear wheels could lock-up before the front wheels.If this occurs, the vehicle could yaw and become unstable. Therefore always inspect the system immediately if EBD control is prohibited.

Fail-safe Function Malfunction Contents
