SYMPTOM TROUBLESHOOTING [ABS]

id0403a5804200

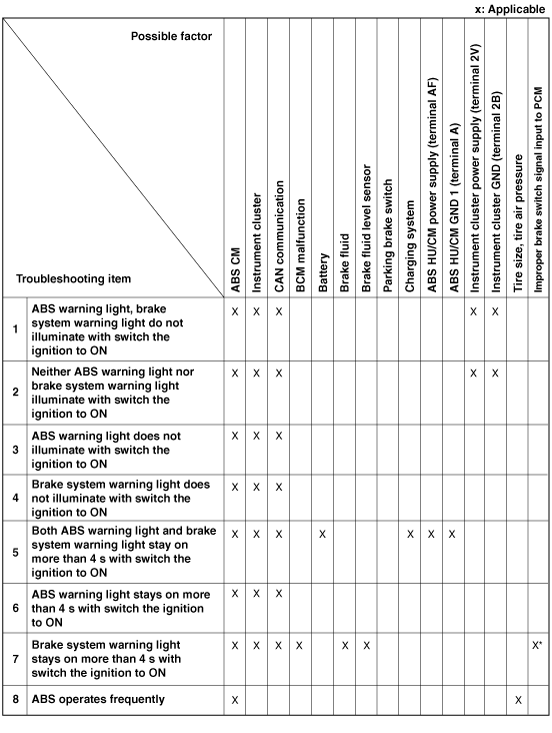

•  Verify the symptoms, and perform troubleshooting according to the appropriate number.

No.

Symptom
1
ABS warning light, brake system warning light do not illuminate with switch the ignition to ON
2
Neither ABS warning light nor brake system warning light illuminate with switch the ignition to ON
3
ABS warning light does not illuminate with switch the ignition to ON
4
Brake system warning light does not illuminate with switch the ignition to ON
5
Both ABS warning light and brake system warning light stay on more than 4 s with switch the ignition to ON
6
ABS warning light stays on more than 4 s with switch the ignition to ON
7
Brake system warning light stays on more than 4 s with switch the ignition to ON
8
ABS operates frequently

am6zzw00007657
*  :Applied VIN (assumed): GH1***429761—, GH1***-442043—, GH10**-206766—, GH10**-210449—, GH****-210421—, GH1***-442043—, GH1***-442043—, GH10**-210449—
