BRAKE HOSE (REAR) REMOVAL/INSTALLATION

id041100190400

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. (See AIR BLEEDING.)

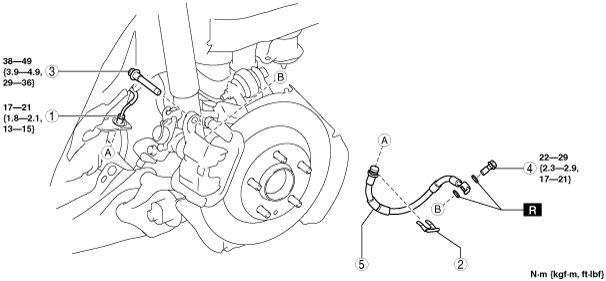

am6zzw00004961

1	Brake pipe
2	Clip
3	Bolt
4	Bolt
5	Brake hose
