FRONT BRAKE (DISC) REMOVAL/INSTALLATION

id041100800900

Note

•  If the set screw cannot be reused due to damage, it is not necessary to install a new one. At thistime, it is not necessary to replace a brake disc with no set screw.

•  There is no problem with the left or right brake having either a set screw or no set screw.

•  There are two types of brake discs; one with the set screw installation hole and the other without one. If it is necessary to replace a brake disc because it exceeds the wear limit, there is no problem with either the left or right brake having a set screw installation hole or not.

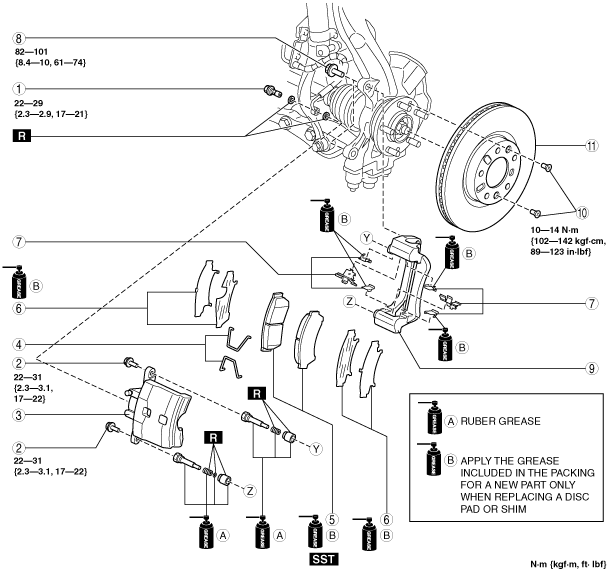

Vehicle with set screw

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. (See AIR BLEEDING.)

4.  After installation, depress the pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

am6zzw00007940

1	Bolt
2	Bolt
3	Caliper
4	Spring
5	Disc pad (See Guide Plate, Shim, Disc Pad Installation Note.)
6	Shim (See Guide Plate, Shim, Disc Pad Installation Note.)
7	Guide plate (See Guide Plate, Shim, Disc Pad Installation Note.)
8	Bolt
9	Mounting support
10	Set screw
11	Disc plate

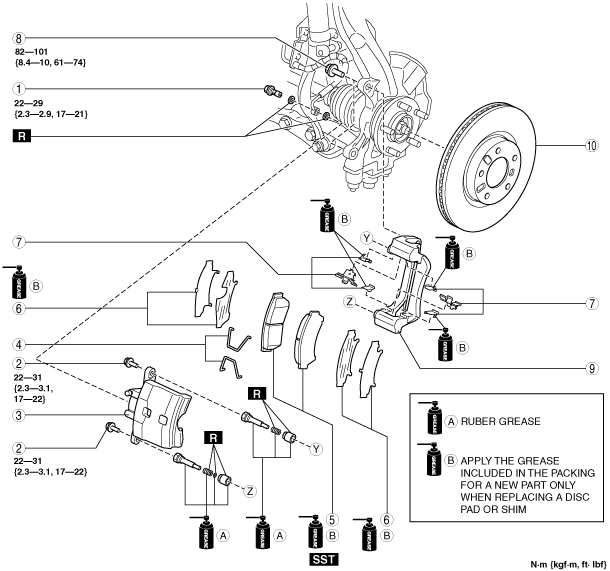

Vehicle without set screw

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. (See AIR BLEEDING.)

4.  After installation, depress the pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

am6zzw00011769

1	Bolt
2	Bolt
3	Caliper
4	Spring
5	Disc pad (See Guide Plate, Shim, Disc Pad Installation Note.)
6	Shim (See Guide Plate, Shim, Disc Pad Installation Note.)
7	Guide plate (See Guide Plate, Shim, Disc Pad Installation Note.)
8	Bolt
9	Mounting support
10	Disc plate

Guide Plate, Shim, Disc Pad Installation Note

Warning

•  Never apply grease to the disc plate and disc pad surfaces as it will cause the brakes to become ineffective resulting in an unexpected accident.

1.  Push the piston fully inward using the SST.

am6zzw00005019

2.  Perform the following procedure only when replacing the disc pads or shims.

Note

•  Apply a thin layer of grease to the entire area without going outside of the specified area.

(1)  Apply the white grease to the contact area of the guide plate mounting support.

am6zzw00005020

(2)  Apply the white grease to the contact area of the disc pad guide plate.

(3)  Apply the grey grease between the shim and pad.

(4)  Apply the grey grease between the shim and shim.

3.  Install the guide plate to the mounting support.

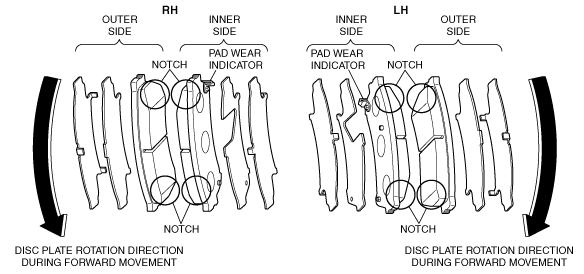

4.  Install the shim and disc pad to the mounting support as shown in the figure.

Note

•  Install the disc pad so that the side with the bigger notch points toward the vehicle’s top.

•  For a disc pad with a pad wear indicator, install it to the vehicle's inner side with the pad wear indicator pointing toward the vehicle's top.

am6zzw00005021
