CALIPER (FRONT) DISASSEMBLY/ASSEMBLY

id041100801000

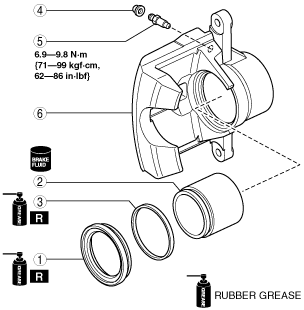

1.  Disassemble in the order indicated in the table.

am6zzw00005022

1	Dust seal
2	Piston (See Piston Disassembly Note)
3	Piston seal
4	Bleeder cap
5	Bleeder screw
6	Caliper body

2.  Assemble in the reverse order of removal.

Piston Disassembly Note

Caution

•  The piston could be damaged if it is blown out with great force. Blow compressed air slowly to prevent the piston from suddenly popping out.

1.  Place a piece of wood in the caliper, then blow compressed air through the hole to force the piston out of the caliper.

am6zzw00005023
