VACUUM PUMP INSPECTION [MZR-CD 2.2]
id0411008110g1

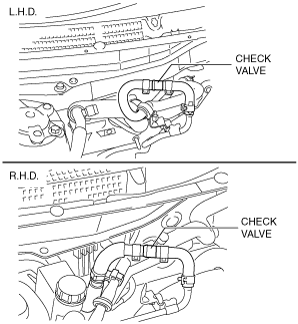

1. Remove the check valve.

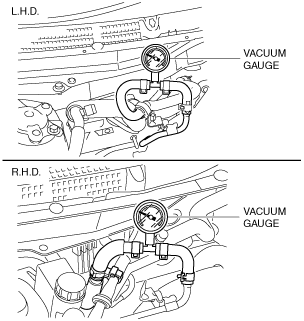

2. Install the vacuum gauge as shown in the figure, then check the vacuum.
3. Warn up the engine.
-
• If the pressure is less than the specification, inspect for the following.
-
― Malfunction of the vacuum pump
-
― Shortage of the lubrication oil pressure
-
Vacuum pump vacuum specification (In 10 s) (MZR-CD 2.2)
-
Engine speed 725 rpm: 66.6 kPa {500 mmHg, 19.7 inHg} or more
-
Vacuum pump maximum vacuum (MZR-CD 2.2)
-
Engine speed 725 rpm: 93.3 kPa {700 mmHg, 27.6 inHg} or more
4. Install in the reverse order of the removal.
