PARKING BRAKE LEVER INSPECTION

id041200196400

Stroke Inspection

1. Pull the parking brake lever two to three times.

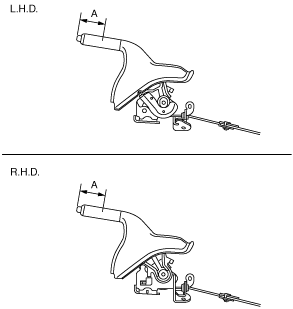

2. Inspect the parking brake stroke by slowly pulling at point A 50 mm {2.0 in} from the end of the parking brake lever with a force of 98 N {10 kgf, 22 lbf} and counting the number of notches (clicking sound).

am6zzw00004997

• If not within the specification, adjust the parking brake lever.

Parking brake lever stroke when pulled at 98 N {10 kgf, 22 lbf}

1—3 notches
