ABS HU/CM INSPECTION

id041300198300

1. Disconnect the ABS HU/CM connectors.

2. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

3. Attach the tester lead to the ABS HU/CM wiring harness-side connector and inspect the voltage, continuity, or resistance according to the standard (reference value) in the table below.

Standard (reference)

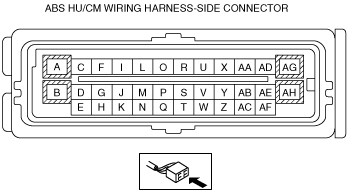

am6zzw00004989

Terminal

Signal name

Connected to

Measured item

Measured terminal (measured condition)

Standard

Inspection item (s)

A

Ground (system)

Ground point

Continuity

A—ground point

Continuity detected

•  Wiring harness (A—ground point)

B

Ground (ABS motor)

Ground point

Continuity

B—ground point

Continuity detected

•  Wiring harness (B—ground point)

C

—

—

—

—

—

—

D

CAN_L

DLC-2 (CAN_L)

This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.

E

CAN_H

DLC-2 (CAN_H)

This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.

F

—

—

—

—

—

—

G

—

—

—

—

—

—

H

—

—

—

—

—

—

I

LR wheel-speed sensor (-)

LR ABS wheel-speed sensor

Continuity

I—LR ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (I—LR ABS wheel-speed sensor connector terminal A)

J

RR wheel-speed sensor (-)

RR ABS wheel-speed sensor

Continuity

J—RR ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (J—RR ABS wheel-speed sensor connector terminal A)

K

—

—

—

—

—

—

L

LR wheel-speed sensor (+)

LR ABS wheel-speed sensor

Continuity

L—LR ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (L—LR ABS wheel-speed sensor connector terminal B)

M

RR wheel-speed sensor (+)

RR ABS wheel-speed sensor

Continuity

M—RR ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (M—RR ABS wheel-speed sensor connector terminal B)

N

Brake switch

Brake switch

Continuity

N—brake switch terminal

Continuity detected

•  Wiring harness (N—brake switch)

O

RF wheel-speed sensor (-)

RF ABS wheel-speed sensor

Continuity

O—RF ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (O—RF ABS wheel-speed sensor connector terminal A)

P

LF wheel-speed sensor (-)

LF ABS wheel-speed sensor

Continuity

P—LF ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (P—LF ABS wheel-speed sensor connector terminal A)

Q

—

—

—

—

—

—

R

RF wheel-speed sensor (+)

RF ABS wheel-speed sensor

Continuity

R—RF ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (R—RF ABS wheel-speed sensor connector terminal B)

S

LF wheel-speed sensor (+)

LF ABS wheel-speed sensor

Continuity

S—LF ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (S—LF ABS wheel-speed sensor connector terminal B)

T

—

—

—

—

—

—

U

—

—

—

—

—

—

V

—

—

—

—

—

—

W

—

—

—

—

—

—

X

—

—

—

—

—

—

Y

—

—

—

—

—

—

Z

—

—

—

—

—

—

AA

—

—

—

—

—

—

AB

—

—

—

—

—

—

AC

—

—

—

—

—

—

AD

—

—

—

—

—

—

AE

—

—

—

—

—

—

AF

Power supply

(system)

Ignition

Voltage

Switch the ignition to ON.

B+

•  Wiring harness (AF—ignition)

Switch the ignition to off.

1 V or less

AG

Power supply

(solenoid operation)

Battery

Voltage

Under any condition

B+

•  Wiring harness (AG―battery)

AH

Power supply

(ABS motor operation)

Battery

Voltage

Under any condition

B+

•  Wiring harness (AH—battery)

Terminal	Signal name	Connected to	Measured item	Measured terminal (measured condition)	Standard	Inspection item (s)
A	Ground (system)	Ground point	Continuity	A—ground point	Continuity detected	• Wiring harness (A—ground point)
B	Ground (ABS motor)	Ground point	Continuity	B—ground point	Continuity detected	• Wiring harness (B—ground point)
C	—	—	—	—	—	—
D	CAN_L	DLC-2 (CAN_L)	This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
E	CAN_H	DLC-2 (CAN_H)	This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
F	—	—	—	—	—	—
G	—	—	—	—	—	—
H	—	—	—	—	—	—
I	LR wheel-speed sensor (-)	LR ABS wheel-speed sensor	Continuity	I—LR ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (I—LR ABS wheel-speed sensor connector terminal A)
J	RR wheel-speed sensor (-)	RR ABS wheel-speed sensor	Continuity	J—RR ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (J—RR ABS wheel-speed sensor connector terminal A)
K	—	—	—	—	—	—
L	LR wheel-speed sensor (+)	LR ABS wheel-speed sensor	Continuity	L—LR ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (L—LR ABS wheel-speed sensor connector terminal B)
M	RR wheel-speed sensor (+)	RR ABS wheel-speed sensor	Continuity	M—RR ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (M—RR ABS wheel-speed sensor connector terminal B)
N	Brake switch	Brake switch	Continuity	N—brake switch terminal	Continuity detected	• Wiring harness (N—brake switch)
O	RF wheel-speed sensor (-)	RF ABS wheel-speed sensor	Continuity	O—RF ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (O—RF ABS wheel-speed sensor connector terminal A)
P	LF wheel-speed sensor (-)	LF ABS wheel-speed sensor	Continuity	P—LF ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (P—LF ABS wheel-speed sensor connector terminal A)
Q	—	—	—	—	—	—
R	RF wheel-speed sensor (+)	RF ABS wheel-speed sensor	Continuity	R—RF ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (R—RF ABS wheel-speed sensor connector terminal B)
S	LF wheel-speed sensor (+)	LF ABS wheel-speed sensor	Continuity	S—LF ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (S—LF ABS wheel-speed sensor connector terminal B)
T	—	—	—	—	—	—
U	—	—	—	—	—	—
V	—	—	—	—	—	—
W	—	—	—	—	—	—
X	—	—	—	—	—	—
Y	—	—	—	—	—	—
Z	—	—	—	—	—	—
AA	—	—	—	—	—	—
AB	—	—	—	—	—	—
AC	—	—	—	—	—	—
AD	—	—	—	—	—	—
AE	—	—	—	—	—	—
AF	Power supply (system)	Ignition	Voltage	Switch the ignition to ON.	B+	• Wiring harness (AF—ignition)
AF	Power supply (system)	Ignition	Voltage	Switch the ignition to off.	1 V or less	• Wiring harness (AF—ignition)
AG	Power supply (solenoid operation)	Battery	Voltage	Under any condition	B+	• Wiring harness (AG―battery)
AH	Power supply (ABS motor operation)	Battery	Voltage	Under any condition	B+	• Wiring harness (AH—battery)
