DYNAMIC STABILITY CONTROL (DSC) OUTLINE

id041500100300

•  Hill launch assist (HLA) has been adopted, improving safety. (MTX vehicles)
•  Receives the lateral-G, longitudinal-G, and yaw rate signals from the sophisticated air bag sensor (SAS) control module instead of the previous combined sensor. In addition, specialized controller area network (CAN) communication has been adopted for communications between the DSC HU/CM and the SAS control module, improving reliability.

DSC Operation Outline

•  The ABS prevents wheel lock-up during braking. The TCS detects drive wheel spin due to the accelerator pedal being pressed too hard or similar causes and controls engine speed to suppress wheel spin. With these systems, safety is assured when driving or stopping.
•  Additionally, sudden changes in vehicle attitude, due to evasive steering or road conditions, are controlled by the DSC. The DSC suppresses vehicle sideslip when driving due to vehicle spin (oversteer) or drift-out (understeer) by controlling braking and engine speed. At this time, the DSC indicator light illuminates to alert the driver that the DSC is operating due to a dangerous situation. As a result, the driver can calmly react and is provided leeway for the next maneuver, resulting in safe driving conditions.
•  In this way the combination of DSC + ABS + TCS ensures driving, stopping and turning safety in all aspects.

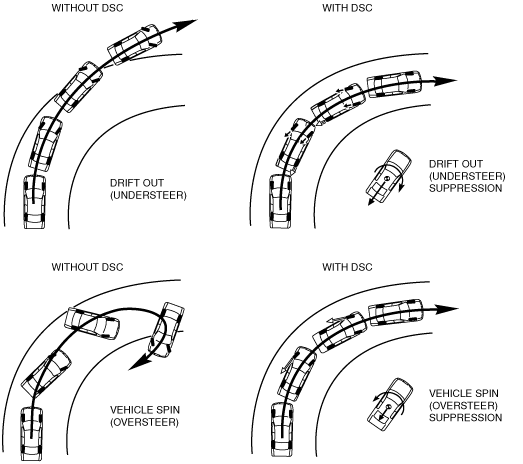

Results Of DSC Operation

am6zzn00001680
Caution
•  While the DSC is a steering safety system, it does not improve normal steering function. Therefore, always drive carefully, even if the vehicle has DSC, and do not overestimate the DSC capability.
•  If the initialization procedures for the steering angle sensor are not performed correctly, an incorrectly determined initial point may cause a discrepancy between the actual driving conditions of the vehicle and the signals from the sensors, resulting in improper DSC operation. Therefore, after replacing or removing the following parts, make sure to perform the DSC HU/CM initialization procedures of the sensor with the vehicle stopped on a level ground to insure proper DSC operation. For the initialization procedures of the sensor, refer to the Workshop Manual.
―  Steering angle sensor
―  Negative battery cable
―  BCM
―  Fuse (ROOM)
―  Wiring harness (steering angle sensor—BCM)
―  Wiring harness (BCM—battery)
•  The DSC and ABS will not operate normally under the following conditions:
―  With tires that are not of the specified size, manufacturer or tread pattern, or not inflated according to specification
―  With tires that have significant comparative wear variation
―  With tire chains
―  With an emergency spare tire
