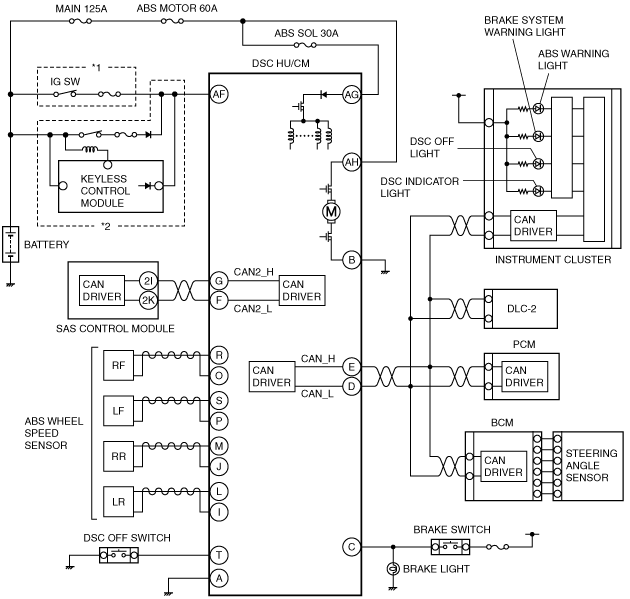

DYNAMIC STABILITY CONTROL (DSC) SYSTEM WIRING DIAGRAM

id041500100600

am6zzn00001683

*1 :Without advanced keyless entry and push button start system

*2 :With advanced keyless entry and push button start system
