CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY [G35M-R]
id0510m1802300

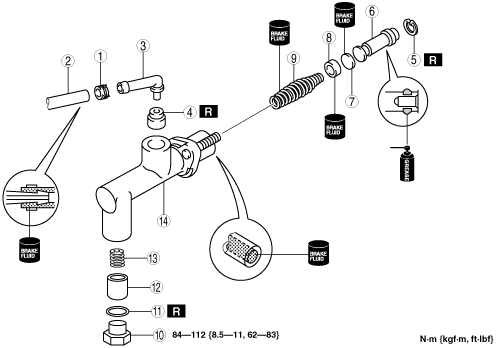

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
am6zzw00007302
|
|
1
|
Clip
|
|
2
|
Hose
|
|
3
|
Joint
|
|
4
|
Bushing
|
|
5
|
Snap ring
|
|
6
|
Piston and secondary cap component
|
|
7
|
Spacer
|
|
8
|
Primary cap
|
|
9
|
Return spring
|
|
10
|
Joint bolt
|
|
11
|
Gasket
|
|
12
|
One-way valve piston
|
|
13
|
One-way valve spring
|
|
14
|
Clutch master cylinder body
|
Snap Ring Disassembly/Assembly Note
1. Hold the piston down using a cloth-wrapped pin punch.
