CLUTCH PEDAL INSPECTION/ADJUSTMENT [A26M-R]

id0510m8802100


Clutch Pedal Height

1.  Measure the distance from the upper surface of the pedal pad.

•  If the clutch pedal height is not within the specification, replace the clutch pedal. (See CLUTCH PEDAL REMOVAL/INSTALLATION [A26M-R].)

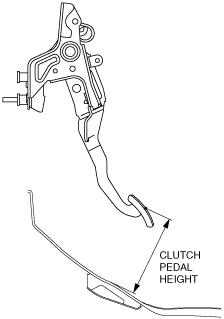

L.H.D.

am6zzw00007117

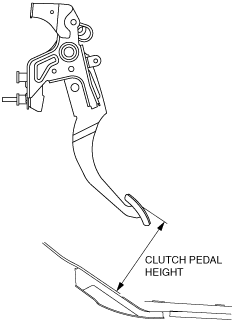

R.H.D.

am6zzw00007118
Clutch pedal height (Reference value)
L.H.D.: 152.7 mm {6.012 in}
R.H.D.: 158.3 mm {6.232 in}


Clutch Pedal Free Play

1.  Depress the clutch pedal by hand until clutch resistance is felt.

am6zzw00007119

•  If the clutch pedal free play is not within the specification, replace the clutch pedal. (See CLUTCH PEDAL REMOVAL/INSTALLATION [A26M-R].)
Clutch pedal free play (Reference value)
15 mm {0.59 in} or less


Clutch Pedal Disengagement Point

1.  Apply the parking brake and fix the front and rear of the wheels with the wheel chocks.

2.  Start the engine.

3.  With the clutch pedal depressed, move the shift lever to the position just before engaging the reverse gear. (Do not shift completely to reverse position)

4.  Gradually release the clutch pedal and then hold it at the point where the sound of gear-grinding begins (clutch disengagement point).

5.  Depress the clutch pedal slowly.

6.  Hold the pedal when the gear noise stops (clutch pedal disengagement point).

7.  Measure distance A (the distance from the clutch pedal disengagement point to the fully depressed position) and the pedal stroke.

8.  Verify that they are within specification.

•  If the measurement is not within the specification, inspect the clutch fluid level and the fluid lines for air infiltration.

L.H.D.

am6zzw00007120

R.H.D.

am6zzw00007121
Distance A, from clutch disengagement point to full stroke (Reference value)
15 mm {0.59 in} or more
Distance B, from clutch disengagement point to floor mat (Reference value)
L.H.D.: 56.5 mm {2.22 in} or more
R.H.D.: 63.5 mm {2.50 in} or more
Clutch pedal stroke (Reference value)
L.H.D.: 140.7 mm {5.539 in}
R.H.D.: 145 mm {5.71 in}
