TCM REMOVAL/INSTALLATION [FS5A-EL]

id051721800400

Caution

•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

European (L.H.D.), General (L.H.D.) specs.

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

am6zzw00004847

1	TCM connector
2	Bracket
3	TCM

U.K. specs.

1.  Disconnect the negative battery cable.

2.  Remove the front scuff plate (LH).

3.  Remove the front side trim (LH).

4.  Partially peel back the flower covering.

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

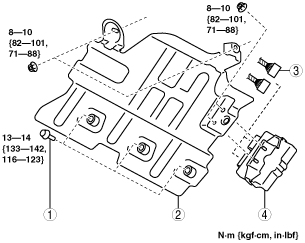

am6zzw00004848

1	Set bolts (SeeSet Bolt Removal Note.) (SeeSet Bolt Installation Note.)
2	PCM cover
3	TCM connector
4	TCM

Australian, General (R.H.D.) specs.

1.  Disconnect the negative battery cable.

2.  Remove the front scuff plate (LH).

3.  Remove the front side trim (LH).

4.  Partially peel back the flower covering.

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

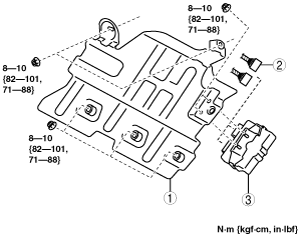

am6zzw00004849

1	PCM cover
2	TCM connector
3	TCM

Set Bolt Removal Note

1.  Using a chisel and a hammer, cut a groove on the head of the set nut/bolt so that a screwdriver can be inserted.

2.  Loose the set nut/bolt using an impact screwdriver or pliers.

am6zzw00004860

Set Bolt Installation Note

1.  Install a new set nut/bolt and tighten it until the neck of the nut/bolt is cut.

am6zzw00004861
