BLOWER UNIT DISASSEMBLY/ASSEMBLY
id071100800600
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

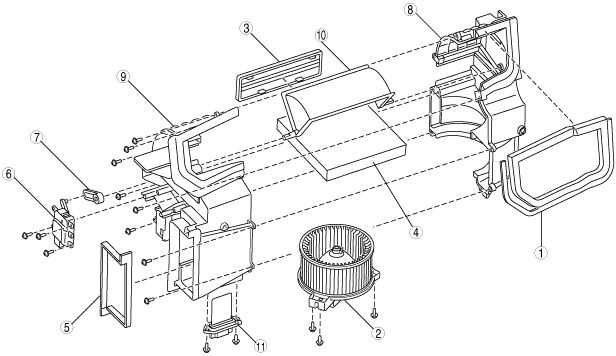

L.H.D.
am6zzw00001046
|
R.H.D.
am6zzw00003493
|
|
1
|
Adhesive polyurethane (1)
|
|
2
|
Blower motor
|
|
3
|
Air filter cover
|
|
4
|
Air filter
|
|
5
|
Adhesive polyurethane (2)
|
|
6
|
Air intake actuator
|
|
7
|
Air intake link
|
|
8
|
Blower case (1)
|
|
9
|
Blower case (2)
|
|
10
|
Air intake door
|
|
11
|
Resistor (Manual air conditioner)
|
