MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1800600

1.  Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.

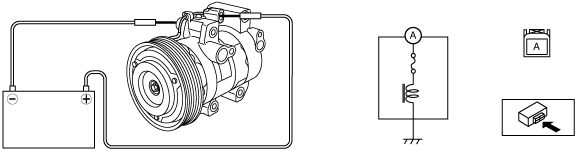

MZR 1.8, MZR 2.0, MZR 2.0 DISI, MZR 2.5

am6zzw00006686

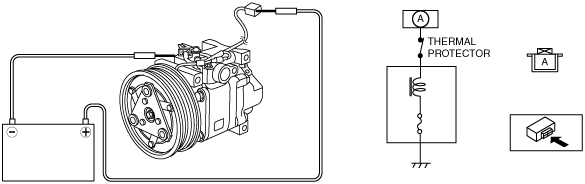

MZR-CD 2.2

am6zzw00004697

2.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch.
