REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1802700

1.  Install the manifold gauge.

2.  Disconnect the refrigerant pressure switch connector.

3.  Verify the high-pressure side reading of the gauge and continuity between the refrigerant pressure switch terminals.

•  If there is any malfunction, replace the refrigerant pressure switch.

Dual pressure type

am6zzw00003667

am6zzw00001086

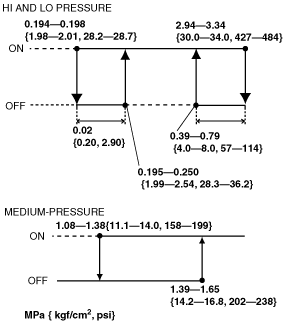

Triple pressure type

am6zzw00003668

am6zzw00002832
