SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1802800

L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

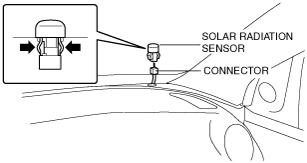

3.  Remove the solar radiation sensor from the dashboard.

am6zzw00006688

4.  Disconnect the solar radiation sensor connector.

Caution

•  After the solar radiation sensor removal, the sensor connector could fall in the dashboard making the installation difficult. Therefore, hold the rooted end of the sensor connector using a clip or similar tool to prevent it from falling.

5.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable.

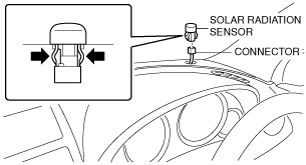

2.  Remove the solar radiation sensor from the dashboard.

am6zzw00006689

3.  Disconnect the solar radiation sensor connector.

Caution

•  After the solar radiation sensor removal, the sensor connector could fall in the dashboard making the installation difficult. Therefore, hold the rooted end of the sensor connector using a clip or similar tool to prevent it from falling.

4.  Install in the reverse order of removal.
