EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]

id0740a2801200

1.  Set the fan speed MAX HI.

2.  Set the temperature control at MAX COLD (Turn the left).

3.  Turn the A/C switch off.

4.  Set the RECIRCULATE mode.

5.  Close all doors and windows.

6.  Wait for 5 min.

7.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

8.  Disconnect the evaporator temperature sensor connector. (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

9.  Measure the temperature at the blower inlet.

10.  Measure the resistance between terminals of the evaporator temperature sensor.

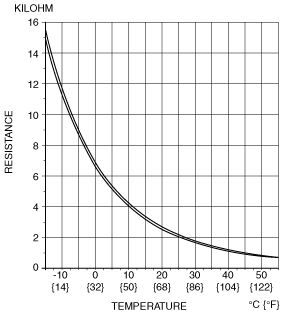

•  If the resistance is not as shown in the graph, replace the evaporator temperature sensor.
