REAR BUCKLE REMOVAL/INSTALLATION

id081100800700

1.  Remove the rear seat cushion. (4SD) (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

2.  Remove the rear seat cushion installation bolts and lift up the rear seat cushion. (5HB, WAGON) (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)

3.  Remove the bolts.

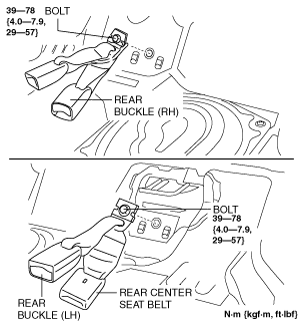

am6zzw00006734

4.  Remove the rear buckle (RH).

5.  Remove the rear buckle (LH).

6.  Remove the rear center seat belt.

7.  Install in the reverse order of removal.
