DTC B10C1:11 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id09021c399800

DESCRIPTION

Short to ground in touch sensor (LF) circuit
DETECTION CONDITION
•  Touch sensor (LF) circuit voltage less than threshold (2.2—6.5 V) is detected for 1 s while the circuit is active.
POSSIBLE CAUSE
•  Front outer handle (LH) connector or terminals malfunction
•  Keyless control module connector or terminals malfunction

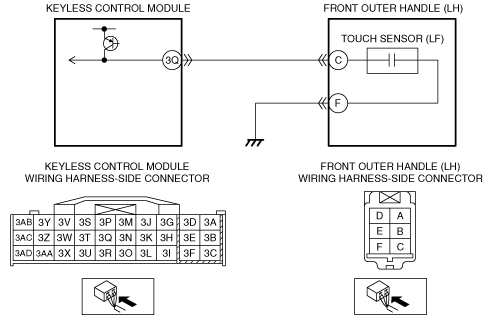

•  Short to ground in wiring harness between front outer handle (LH) terminal C and keyless control module terminal 3Q
•  Touch sensor (LF) malfunction
•  Keyless control module malfunction

Diagnostic Procedure

Step

Inspection

Action
1
INSPECT FRONT OUTER HANDLE (LH) CONNECTOR CONDITION
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Disconnect the front outer handle (LH) connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 5.
No
Go to the next step.
2
INSPECT KEYLESS CONTROL MODULE CONNECTOR CONDITION
•  Disconnect the keyless control module connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 5.
No
Go to the next step.
3
INSPECT TOUCH SENSOR (LF) CIRCUIT FOR SHORT TO GROUND
•  Front outer handle (LH) and keyless control module connectors are disconnected.
•  Inspect for continuity between front outer handle (LH) terminal C (wiring harness-side) and body ground.
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to Step 5.
No
Go to the next step.
4
VERIFY TOUCH SENSOR (LF) MALFUNCTION
•  Make sure to reconnect the disconnected connectors.
•  Reconnect the negative battery cable.
•  Clear the DTC from the keyless control module using the M-MDS.
•  Switch the ignition to off.
•  Perform the advanced keyless entry and push button start system DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Replace the touch sensor (LF), then go to the next step.
(See TOUCH SENSOR REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
No
Go to Step 6.
5
VERIFY TROUBLESHOOTING COMPLETED
•  Make sure to reconnect the disconnected connectors.
•  Reconnect the negative battery cable.
•  Clear the DTC from the keyless control module using the M-MDS.
•  Switch the ignition to off.
•  Perform the advanced keyless entry and push button start system DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Repeat the inspection from Step 1.
If the malfunction recurs, replace the keyless control module, then go to the next step.
(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
No
Go to the next step.
6
VERIFY THAT NO OTHER DTCs ARE PRESENT
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
No
DTC troubleshooting completed.
