SECURITY LIGHT: NOT ILLUMINATED, DTC B10E6:11/- [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

id09021d905500

DTC

Security light flashing pattern

—

Coil antenna power supply circuit malfunction

M-MDS display

Keyless control module

B10E6:11

PCM

—

DETECTION CONDITION

•  Voltage less than the specification (2.2—6.5 V) is detected for 0.5 s with the coil antenna power supply voltage operating.

POSSIBLE CAUSE

•  Coil antenna connector or terminals malfunction

•  Keyless control module connector or terminals malfunction

•  Short to ground in wiring harness between the following terminals:

―  Coil antenna terminal A—Keyless control module terminal 4Q

―  Coil antenna terminal B—Keyless control module terminal 4Q

•  Coil antenna malfunction

•  Keyless control module malfunction

DTC	Security light flashing pattern	—	Coil antenna power supply circuit malfunction
DETECTION CONDITION	• Voltage less than the specification (2.2—6.5 V) is detected for 0.5 s with the coil antenna power supply voltage operating.
POSSIBLE CAUSE	• Coil antenna connector or terminals malfunction • Keyless control module connector or terminals malfunction • Short to ground in wiring harness between the following terminals: ― Coil antenna terminal A—Keyless control module terminal 4Q ― Coil antenna terminal B—Keyless control module terminal 4Q • Coil antenna malfunction • Keyless control module malfunction

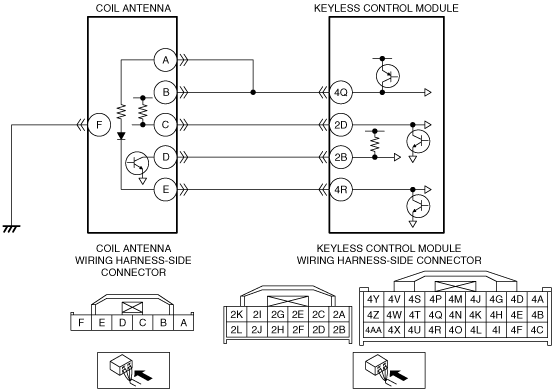

System Wiring Diagram

am6zzw00006140

Diagnostic Procedure

STEP

INSPECTION

ACTION

1

INSPECT COIL ANTENNA CONNECTOR AND TERMINALS

•  Switch the ignition to off.

•  Disconnect the negative battery cable.

•  Disconnect the coil antenna connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 5.

No

Go to the next step.

2

INSPECT KEYLESS CONTROL MODULE CONNECTOR AND TERMINALS

•  Disconnect the keyless control module connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 5.

No

Go to the next step.

3

INSPECT COIL ANTENNA POWER SUPPLY CIRCUIT FOR SHORT TO GROUND

•  Coil antenna and keyless control module connectors are disconnected.

•  Inspect for continuity between the following terminals (wiring harness-side) and body ground:

―  Coil antenna terminal A

―  Coil antenna terminal B

•  Is there continuity?

Yes

Repair or replace the wiring harness for a possible short to ground, then go to Step 5.

No

Go to the next step.

4

VERIFY COIL ANTENNA MALFUNCTION

•  Make sure to reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTC from the keyless control module using the M-MDS.
(See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Verify the immobilizer system DTC using the M-MDS.
(See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Is the same DTC present?

Yes

Replace the coil antenna, then go to the next step.

(See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

No

Go to Step 6.

5

VERIFY TROUBLESHOOTING COMPLETED

•  Make sure to reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTC from the keyless control module using the M-MDS.
(See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Verify the immobilizer system DTC using the M-MDS.
(See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Is the same DTC present?

Yes

Replace the keyless control module and program the immobilizer system-related parts.

(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

Go to the next step.

No

Go to the next step.

6

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Are any DTCs present?

Yes

Go to the applicable DTC inspection.

(See DTC TABLE [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

No

DTC troubleshooting completed.

DTC	Security light flashing pattern		—	Coil antenna power supply circuit malfunction
	M-MDS display	Keyless control module	B10E6:11
	M-MDS display	PCM	—
DETECTION CONDITION				• Voltage less than the specification (2.2—6.5 V) is detected for 0.5 s with the coil antenna power supply voltage operating.
POSSIBLE CAUSE				• Coil antenna connector or terminals malfunction • Keyless control module connector or terminals malfunction • Short to ground in wiring harness between the following terminals: ― Coil antenna terminal A—Keyless control module terminal 4Q ― Coil antenna terminal B—Keyless control module terminal 4Q • Coil antenna malfunction • Keyless control module malfunction

STEP	INSPECTION		ACTION
1	INSPECT COIL ANTENNA CONNECTOR AND TERMINALS • Switch the ignition to off. • Disconnect the negative battery cable. • Disconnect the coil antenna connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 5.
1		No	Go to the next step.
2	INSPECT KEYLESS CONTROL MODULE CONNECTOR AND TERMINALS • Disconnect the keyless control module connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 5.
2		No	Go to the next step.
3	INSPECT COIL ANTENNA POWER SUPPLY CIRCUIT FOR SHORT TO GROUND • Coil antenna and keyless control module connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side) and body ground: ― Coil antenna terminal A ― Coil antenna terminal B • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to Step 5.
3		No	Go to the next step.
4	VERIFY COIL ANTENNA MALFUNCTION • Make sure to reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTC from the keyless control module using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].) • Verify the immobilizer system DTC using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].) • Is the same DTC present?	Yes	Replace the coil antenna, then go to the next step. (See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
4		No	Go to Step 6.
5	VERIFY TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTC from the keyless control module using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].) • Verify the immobilizer system DTC using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].) • Is the same DTC present?	Yes	Replace the keyless control module and program the immobilizer system-related parts. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) Go to the next step.
5		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)
6		No	DTC troubleshooting completed.
