DIAGNOSTIC CHECK [CAR-NAVIGATION SYSTEM]
id0902f7412300

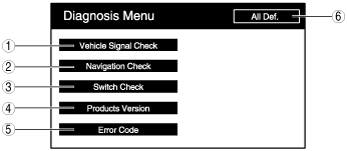

Inspection item list
am6zzw00002765
|
|
No. |
Name |
Content/function |
|---|---|---|
|
1
|
Perform the vehicle signal check.
|
|
|
2
|
Navigation Check
|
Go to the Navigation Check Menu. (See NAVIGATION CHECK [CAR-NAVIGATION SYSTEM].)
|
|
3
|
Perform the switch inspection.
|
|
|
4
|
Verify the products version.
|
|
|
5
|
Error Code
|
|
|
6
|
All Def.
|
|

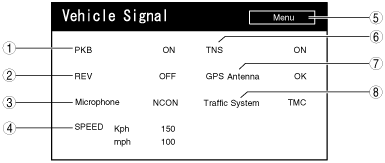

Vehicle Signal Check
1. Switch the ignition to ACC or ON.
2. Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].)
3. Select “Vehicle Signal Check”.
4. Verify the condition of the vehicle signal input to the display.
am6zzw00002404
|
|
No. |
Name |
Content/function |
|---|---|---|
|
1
|
PKB
|
Display the PKB signal condition.
|
|
2
|
REV
|
Display the REV signal condition.
|
|
3
|
Microphone
|
Verify the microphone condition.
|
|
4
|
SPEED
|
Display the vehicle speed.
|
|
5
|
Menu
|
Return to the Diagnosis Menu.
|
|
6
|
TNS
|
Display the TNS signal condition.
|
|
7
|
GPS Antenna
|
Display the GPS Antenna condition.
|
|
8
|
Traffic System
|
Display the Traffic System condition.
|
5. To stop the on-board diagnostic mode, ignition is switched to off.
Switch Check
1. Switch the ignition to ACC or ON.
2. Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].)
3. Select “Switch Check”.
4. Operate the panel switches and verify that they operate correctly.
am6zzw00002783
|
|
No. |
Name |
Content/function |
|---|---|---|
|
1
|
Menu
|
Return to the Diagnosis Menu.
|
|
2
|
Name of press-type switch
|
The name of the operated press-type switch is displayed.
|
|
3
|
Turn direction of switch
|
The operation condition (Left/Right) is displayed.
|
|
4
|
Name of dial-type switch
|
The name of the operated dial-type switch is displayed.
|
5. To stop the on-board diagnostic mode, ignition is switched to off.
Products Version
1. Switch the ignition to ACC or ON.
2. Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].)
3. Select “Products Version”.
4. Verify each version.
am6zzw00004663
|
|
No. |
Name |
Content/function |
|---|---|---|
|
1
|
Country Code
|
Display the country code.
|
|
2
|
Hardware ID
|
Display the hardware ID.
|
|
3
|
Software Ver
|
Display the software version.
|
|
4
|
Leader Ver
|
Display the leader version.
|
|
5
|
Map Ver
|
Display the map version.
|
|
6
|
Menu
|
Return to the Diagnosis Menu.
|
5. To stop the on-board diagnostic mode, ignition is switched to off.
