FRONT BUMPER DISASSEMBLY/ASSEMBLY
id091000405200
1. Remove the headlight cleaner actuator. (See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION)

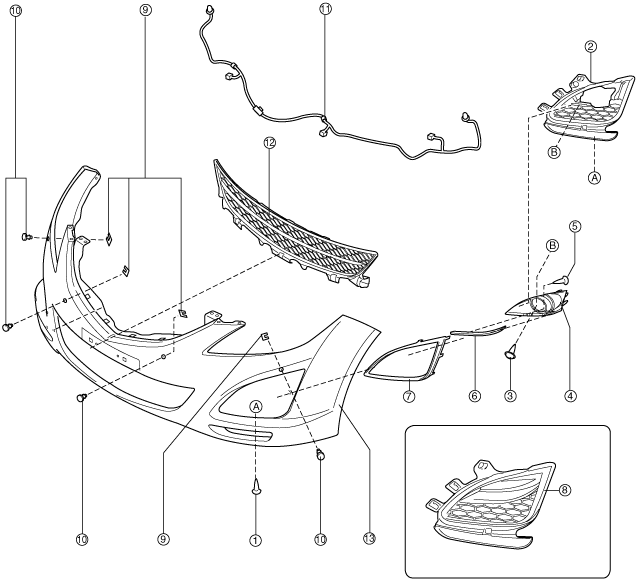

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
am6zzw00006316
|
|
1
|
Screw A
|
|
2
|
Front fog light hole cover (Vehicles with front fog light)
|
|
3
|
Screw B (Vehicles with front fog light)
|
|
4
|
Front fog light cover (Vehicles with front fog light)
|
|
5
|
Screw C (Vehicles with front fog light)
|
|
6
|
Front bumper guard (Vehicles with front fog light)
|
|
7
|
Front fog light bezel (Vehicles with front fog light)
|
|
8
|
Front fog light hole cover (Vehicles without front fog light)
|
|
9
|
Clip (Vehicles with parking sensor)
|
|
10
|
Ultrasonic sensor (Vehicles with parking sensor)
|
|
11
|
Ultrasonic sensor wiring harness (Vehicles with parking sensor)
|
|
12
|
Front bumper mesh
|
|
13
|
Front bumper face
|
