BONNET DISASSEMBLY/ASSEMBLY

id091000899800

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

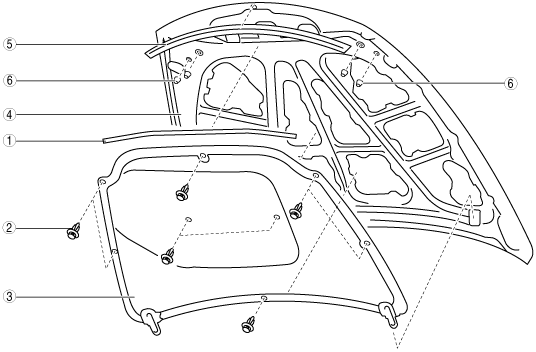

am6zzw00001204

1	Shroud seaming welt
2	Fastener
3	Bonnet insulator
4	Bonnet component
5	Parting seal seaming welt
6	Stop rubber
