REAR DOOR REMOVAL/INSTALLATION

id091100520600

Warning

•  Removing the rear door without supporting it could cause the rear door to fall and cause serious injury. Always perform the procedure with at least another person to prevent the rear door from falling.

1.  Disconnect the negative battery cable.

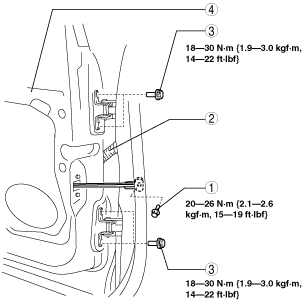

2.  Remove in the order indicated in the table.

am6zzw00001396

1	Bolt A
2	Connector (See Connector Removal Note.)
3	Bolt B
4	Rear door

3.  Install in the reverse order of removal.

4.  Adjust the rear door. (See DOOR ADJUSTMENT.)

Connector Removal Note

1.  While pressing the tab in the direction of arrow (1), disconnect the connector in the direction of arrow (2).

am6zzw00001397
