LIFTGATE ADJUSTMENT

id091100521400

5HB

1. Measure the gap and height difference between the liftgate and the body.

2. Loosen the liftgate hinge installation bolts and adjust the gap by moving the liftgate.

am6zzw00004606

Standard clearance

a: 5.0—7.0 mm {0.20—0.27 in}

b: -2.1—0.1 mm {0.082—0.003 in}

c: 3.4—7.4 mm {0.14—0.29 in}

d: 4.2—8.6 mm {0.17—0.33 in}

e: 2.8—5.2 mm {0.12—0.20 in}

f: -1.8—0.6 mm {-0.07—0.023 in}

g: 2.0—5.4 mm {0.078—0.21 in}

h: -2.1—1.9 mm {-0.082—0.074 in}

i: 8.0—12.0 mm {0.31—0.47 in}

3. Tighten the bolts.

WGN

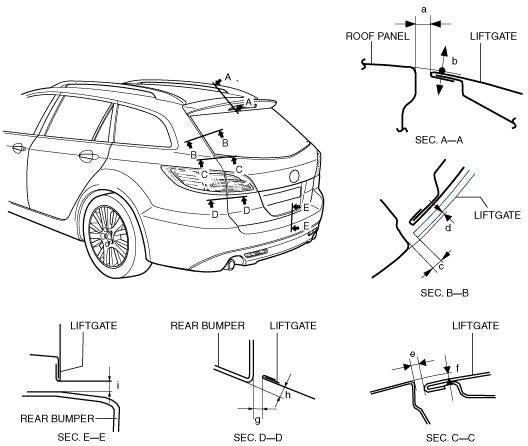

1. Measure the gap and height difference between the liftgate and the body.

2. Loosen the liftgate hinge installation bolts and adjust the gap by moving the liftgate.

am6zzw00003363

Standard clearance

a: 5.5—7.5 mm {0.21—0.29 in}

b: -2.0—0.0 mm {0.078—0.000 in}

c: 2.7—6.9 mm {0.106—0.271 in}

d: -5.4—-1.0 mm {0.212—0.039 in}

e: 2.8—5.2 mm {0.11—0.20 in}

f: -1.7—0.7 mm {-0.066—0.027 in}

g: 2.0—6.0 mm {0.078—0.236 in}

h: -2.0—2.0 mm {-0.078—0.078 in}

i: 4.0—8.0 mm {0.16—0.31 in}

3. Tighten the bolts.
