POWER SEAT SWITCH INSPECTION

id091300801100

1.  Disconnect the power seat switch connector.

2.  Inspect for continuity between the power seat switch connector terminals using an ohmmeter.

•  If not as specified, replace the power seat switch.

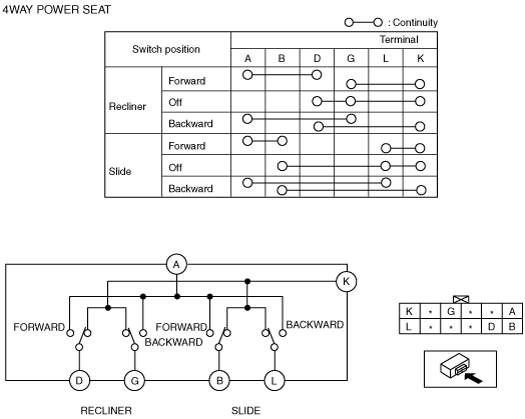

L.H.D.

am6zzw00007231

am6zzw00007232

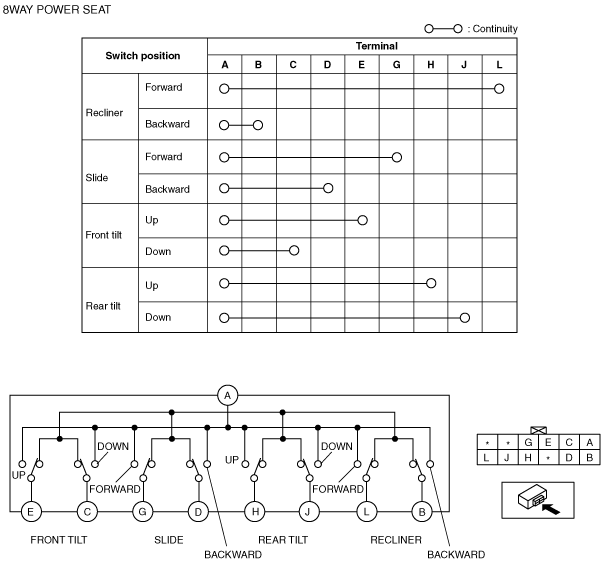

R.H.D.

am6zzw00007233

am6zzw00007232
