SEAT WARMER SWITCH INSPECTION

id091300801300

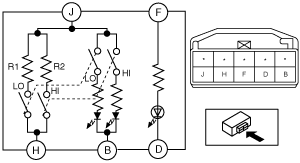

1.  Inspect for continuity between the seat warmer switch terminal J, and connect terminal H using an ohmmeter.

am6zzw00004790

•  If not as specified, replace the seat warmer switch. (See SEAT WARMER SWITCH REMOVAL/INSTALLATION.)

am6zzw00004791

2.  Apply battery voltage to seat warmer switch terminal J, and connect terminal B to ground.

3.  Seat warmer switch to Lo or Hi position.

4.  Verify that the LED illuminates.

•  If there is any malfunction, replace the seat warmer switch. (See SEAT WARMER SWITCH REMOVAL/INSTALLATION.)

5.  Apply battery voltage to seat warmer switch terminal F, and connect terminal D to ground.

6.  Verify that the LED illuminates.

•  If there is any malfunction, replace the seat warmer switch. (See SEAT WARMER SWITCH REMOVAL/INSTALLATION.)
