POSITION MEMORY CONTROL MODULE INSPECTION
id091300811200
1. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.
2. If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the position memory control module.

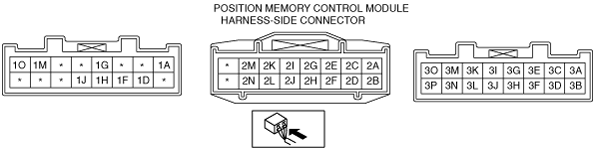

Terminal Voltage Table (Reference)
am6zzw00007236
|
|
Terminal |
Signal name |
Connected to |
Measured condition |
Voltage (V) |
Inspection item (s) |
|---|---|---|---|---|---|
|
1A
|
Keyless entry signal
|
BCM
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
• BCM
• Related wiring harness
|
|
|
1D
|
Vehicle speed input
|
Instrument cluster
|
Measure the waveform while driving using the oscilloscope.
|
High output: B+
|
• Instrument cluster
• Related wiring harness
|
|
Low output: 1.0 or less
|
|||||
|
1F
|
Door open/closed
|
Front door latch and lock actuator (Door close on)
|
Driver-side door open: Inspect for continuity to ground.
B+
|
• Front door latch and lock actuator (Door close on)
• Related wiring harness
|
|
|
Driver-side door closed: Inspect for continuity to ground.
1.0 or less
|
|||||
|
1G
|
IG1
|
BCM
|
Switch the ignition to ON
|
B+
|
• BCM
• Related wiring harness
|
|
Switch the ignition to off or ACC
|
1.0 or less
|
||||
|
1H
|
Signal GND
|
Body ground
|
Under any condition
|
1.0 or less
|
Related wiring harness
|
|
1J
|
Power GND
|
Body ground
|
Under any condition
|
1.0 or less
|
Related wiring harness
|
|
1M
|
Power supply
|
ROOM 15 A fuse
|
Under any condition
|
B+
|
• ROOM 15 A fuse
• Related wiring harness
|
|
1O
|
Power supply
|
P. SEAT 30 A fuse
|
Under any condition
|
B+
|
• P. SEAT 30 A fuse
• Related wiring harness
|
|
2A
|
Slide switch input (forward)
|
Power seat switch
|
Press the slide switch to forward
|
1.0 or less
|
• Power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2B
|
Slide switch input (backward)
|
Power seat switch
|
Press the slide switch to backward
|
1.0 or less
|
• Power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2C
|
Front tilt switch input (up)
|
Power seat switch
|
Press the front tilt switch to up
|
1.0 or less
|
• Power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2D
|
Front tilt switch input (down)
|
Power seat switch
|
Press the front tilt switch to down
|
1.0 or less
|
• Power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2E
|
Rear tilt switch input (up)
|
Power seat switch
|
Press the rear tilt switch to up
|
1.0 or less
|
• Power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2F
|
Rear tilt switch input (down)
|
Power seat switch
|
Press the rear tilt switch to down
|
1.0 or less
|
• Power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2G
|
Recliner switch input (forward)
|
Power seat switch
|
Press the recliner switch to forward
|
1.0 or less
|
• Power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2H
|
Recliner switch input (backward)
|
Power seat switch
|
Press the recliner switch to backward
|
1.0 or less
|
• Power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2I
|
Signal GND input
|
Power seat switch
|
Under any condition
|
1.0 or less
|
• Power seat switch
• Related wiring harness
|
|
2J
|
Signal GND input
|
Position memory switch
|
Under any condition
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
2K
|
Set switch input
|
Position memory switch
|
Press the set switch
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2L
|
Memory switch 1 input
|
Position memory switch
|
Press the memory switch 1
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2M
|
Memory switch 2 input
|
Position memory switch
|
Press the memory switch 2
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
2N
|
Memory switch 3 input
|
Position memory switch
|
Press the memory switch 3
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3A
|
Slide motor output (forward)
|
Slide motor
|
While slide motor is moving to forward
|
B+
|
• Slide motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3B
|
Slide motor output (backward)
|
Slide motor
|
While slide motor is moving to backward
|
B+
|
• Slide motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3C
|
Front tilt motor output (up)
|
Front tilt motor
|
While front tilt motor is moving to up
|
B+
|
• Front tilt motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3D
|
Front tilt motor output (down)
|
Front tilt motor
|
While front tilt motor is moving to down
|
B+
|
• Front tilt motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3E
|
Rear tilt motor output (up)
|
Rear tilt motor
|
While rear tilt motor is moving to up
|
B+
|
• Rear tilt motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3F
|
Rear tilt motor output (down)
|
Rear tilt motor
|
While rear tilt motor is moving to down
|
B+
|
• Rear tilt motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3G
|
Recliner motor output (forward)
|
Recliner motor
|
While recliner motor is moving to forward
|
B+
|
• Recliner motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3H
|
Recliner motor output (backward)
|
Recliner motor
|
While recliner motor is moving to backward
|
B+
|
• Recliner motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3I
|
Position sensor (slide)+
|
Position sensor (slide)
|
Because this terminal is for signal, good/no good judgment by terminal voltage is not possible.
|
• Position sensor (slide)
• Related wiring harnesses
|
|
|
3J
|
Position sensor (slide)-
|
Position sensor (slide)
|
Because this terminal is for signal, good/no good judgment by terminal voltage is not possible.
|
• Position sensor (slide)
• Related wiring harnesses
|
|
|
3K
|
Position sensor (tilt)+
|
Position sensor (tilt)
|
Because this terminal is for signal, good/no good judgment by terminal voltage is not possible.
|
• Position sensor (tilt)
• Related wiring harnesses
|
|
|
3L
|
Position sensor (tilt)-
|
Position sensor (tilt)
|
Because this terminal is for signal, good/no good judgment by terminal voltage is not possible.
|
• Position sensor (tilt)
• Related wiring harnesses
|
|
|
3M
|
Position sensor (lift)+
|
Position sensor (lift)
|
Because this terminal is for signal, good/no good judgment by terminal voltage is not possible.
|
• Position sensor (lift)
• Related wiring harnesses
|
|
|
3N
|
Position sensor (lift)-
|
Position sensor (lift)
|
Because this terminal is for signal, good/no good judgment by terminal voltage is not possible.
|
• Position sensor (lift)
• Related wiring harnesses
|
|
|
3O
|
Position sensor (reclining)+
|
Position sensor (reclining)
|
Because this terminal is for signal, good/no good judgment by terminal voltage is not possible.
|
• Position sensor (reclining)
• Related wiring harnesses
|
|
|
3P
|
Position sensor (reclining)-
|
Position sensor (reclining)
|
Because this terminal is for signal, good/no good judgment by terminal voltage is not possible.
|
• Position sensor (reclining)
• Related wiring harnesses
|
|
