FRONT SEAT BACK TRIM REMOVAL/INSTALLATION

id091300912000

Warning

• Handling a front seat improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings before handling a front seat. (See AIR BAG SYSTEM SERVICE WARNINGS.)

Caution

• After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.

• Verify that there are no malfunctions in the sliding mechanism after installing a front seat.

• When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

L.H.D.

Removal

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait 1 min or more.

3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4. Remove the headrest.

5. Cut the band A securing the harness.

am6zzw00004575

6. Remove the clip B.

7. Cut the band securing the side air bag wiring harness.

am6zzw00006840

8. Remove the clip C then remove the lumber support lever.

am6zzw00002464

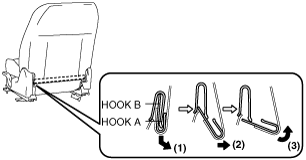

9. Slide hook A in the order of (1), (2), (3) shown in the figure to detach it from hook B.

am6zzw00002947

10. Open the fastener.

am6zzw00006841

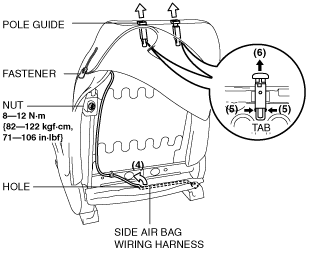

11. Pull out the side air bag wiring harness from the hole of the seat back trim and seat back pad by pulling it in the direction of arrow (4) shown in the figure.

12. Partially peal back the front seat back trim, release the pole guide tabs in the direction of arrow (5) shown in the figure, then pull the pole guide out in the direction of arrow (6).

13. Remove the nut.

14. Press in the holder bracket to the seat back pad being careful not to catch the frame spring.

am2zzw00000515

15. Pull out part A shown in the figure to the front.

am6zzw00002949

16. Remove the seat back trim and the seat back pad as a single unit from the seat frame by pulling them in the direction of the arrow.

am6zzw00002950

17. Partially peal back the seat back trim from the seat back pad, remove rings C in the order of (7), (8), (9) shown in the figure, then remove the seat back trim.

am6zzw00002951

Installation

1. Install the seat back trim to the seat back pad, install the rings C in the order of (1), (2), (3) shown in the figure, then install the seat back trim.

am6zzw00000001

2. Install the seat back trim and the seat back pad as a single unit from the seat frame by pushing them in the direction of the arrow

am6zzw00000002

3. Pass holder bracket A through slit A of the seat back pad.

am6zzw00006842

Caution

• Set the holder bracket A with the sleeve not caught in the seat frame spring.

am6zzw00002859

4. Push the part A shown in the figure to the rear.

am6zzw00000003

5. Pass holder bracket B through slit B of the seat back pad.

am6zzw00006843

Caution

• Install it without twisting the sleeve.

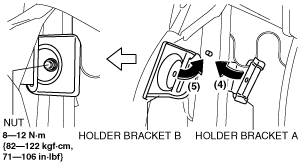

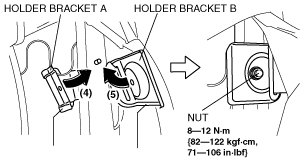

6. Assemble the holder bracket A to the frame in the order of (4), (5) shown in the figure.

am6zzw00002995

7. Install the nut.

8. Install the pole guide in the direction of arrow shown in the figure.

am6zzw00004578

9. Shut the fastener.

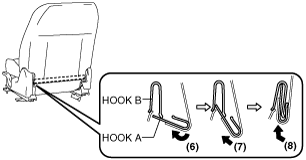

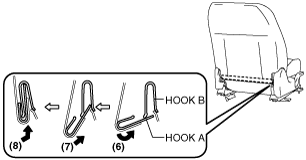

10. Slide hook A in the order of (6), (7), (8) shown in the figure to install it to hook B

am6zzw00002996

11. Install the clip C to the lumber support lever, then install the lumber support lever.

am6zzw00000006

12. Install the band, while tighten the side air bag wiring harness.

am6zzw00006840

13. Install the band with the end pointed to the front.

am6zzw00006844

14. Cut the band end so that the length of the band end is 5 mm {0.2 in} or less from the securing point.

15. Install the clip B.

am6zzw00004575

16. Install the band A, while tighten the wiring harness.

R.H.D.

Removal

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait 1 min or more.

3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4. Remove the headrest.

5. Cut the band A securing the wiring harness.

am6zzw00004580

6. Remove the clip B.

7. Cut the band securing the side air bag wiring harness.

am6zzw00006845

8. Remove the clip C then remove the lumber support lever.

am6zzw00002467

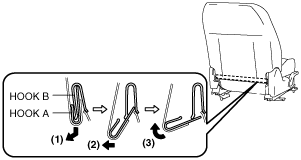

9. Slide hook A in the order of (1), (2), (3) shown in the figure to detach it from hook B.

am6zzw00002953

10. Open the fastener.

am6zzw00004582

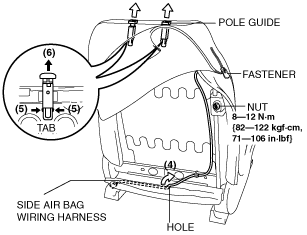

11. Pull out the side air bag wiring harness from the hole of the seat back trim and seat back pad by pulling it in the direction of arrow (4) shown in the figure.

12. Partially peal back the front seat back trim, release the pole guide tabs in the direction of arrow (5) shown in the figure, then pull the pole guide out in the direction of arrow (6).

13. Remove the nut.

14. Press in the holder bracket to the seat back pad being careful not to catch the frame spring.

am2zzw00002074

15. Pull out part A shown in the figure to the front.

am6zzw00003343

16. Remove the seat back trim and the seat back pad as a single unit from the seat frame by pulling them in the direction of the arrow.

am6zzw00002955

17. Partially peal back the seat back trim from the seat back pad, remove rings C in the order of (7), (8), (9) shown in the figure, then remove the seat back trim.

am6zzw00002956

Installation

1. Install the seat back trim to the seat back pad, install the rings C in the order of (1), (2), (3) shown in the figure, then install the seat back trim.

am6zzw00000001

2. Install the seat back trim and the seat back pad as a single unit from the seat frame by pushing them in the direction of the arrow

am6zzw00000007
