FRONT SEAT SIDE COVER REMOVAL/INSTALLATION

id091300912100

Vehicles With Power Seat System

1.  Disconnect the negative battery cable.

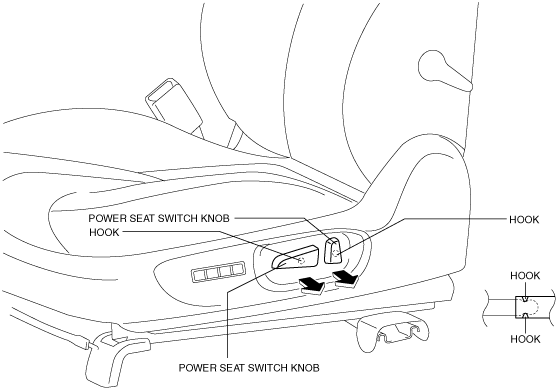

2.  Pull the power seat switch knobs in the direction of arrow, while remove the hooks.

am6zzw00002474

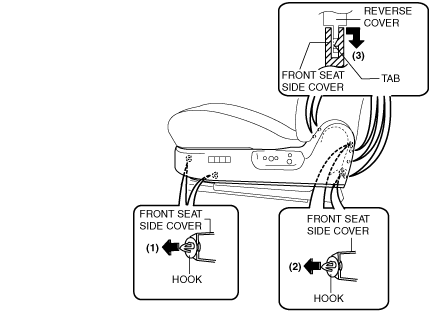

3.  Pull the front seat side cover in the order of (1), (2), (3) shown in the figure to disengage the hooks and tab.

am6zzw00004584

4.  Remove the front seat side cover.

5.  Disconnect the seat position memory switch connector.

6.  Install in the reverse order of removal.

Vehicles Without Power Seat System

Vehicles with dial type recliner knob

1.  Operate the lift lever in the direction of arrow (1) shown in the figure. (Driver's seat) (Vehicles with seat lifter)

am6zzw00002963

2.  Insert a fastener remover from the position of arrow (2) shown in the figure, and remove the lift lever cover by disengaging the tab. (Driver's seat) (Vehicles with seat lifter)

3.  Remove the screws, then remove the lift lever in the direction of the arrow. (Driver's side) (Vehicles with seat lifter)

am6zzw00004586

4.  Remove the clip then remove the recliner knob.

am6zzw00002965

5.  Remove the screw.

am6zzw00002966

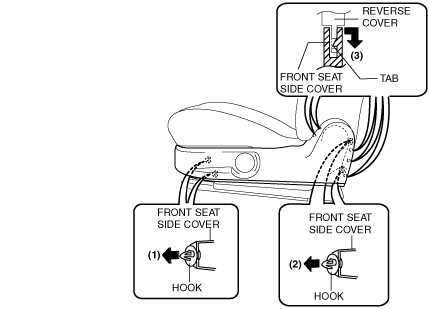

6.  Pull the front seat side cover in the order of (1), (2), (3) shown in the figure to disengage the hooks and tab.

am6zzw00004587

7.  Remove the front seat side cover.

8.  Install in the reverse order of removal.

Vehicles with lever type recliner knob

1.  Operate the lift lever in the direction of arrow (1) shown in the figure. (Driver's seat) (Vehicles with seat lifter)

am6zzw00002963

2.  Insert a fastener remover from the position of arrow (2) shown in the figure, and remove the lift lever cover by disengaging the tab. (Driver's seat) (Vehicles with seat lifter)

3.  Remove the screws, then remove the lift lever in the direction of the arrow. (Driver's side) (Vehicles with seat lifter)

am6zzw00004586

4.  After operating the recliner knob in the upward direction (3), cut the area indicated in the figure, then remove the recliner knob in the direction of arrow (4).

am6zzw00006854

5.  Remove the screw.

am6zzw00006855

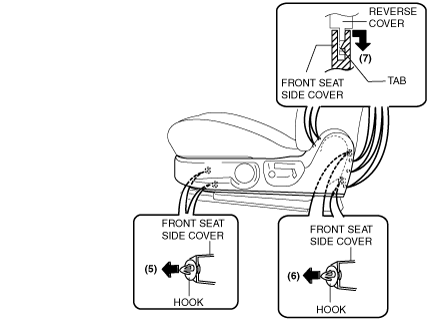

6.  Pull the front seat side cover in the order of (5), (6), (7) shown in the figure to disengage the hooks and tab.

am6zzw00006856

7.  Remove the front seat side cover.

8.  Install in the reverse order of removal.
