REAR SIDE SEAT BACK REMOVAL/INSTALLATION

id091300912300

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD])

2.  Remove the bolt.

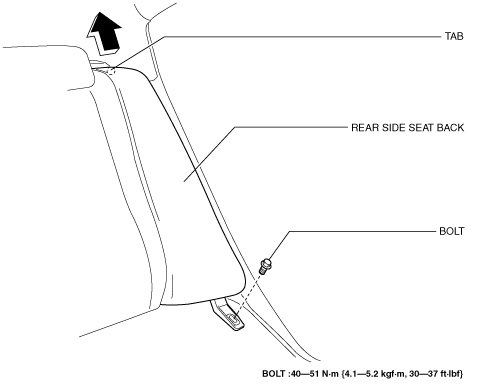

am6zzw00007227

3.  Remove the rear side seat back, while remove the tab in the indicated of arrow shown in the figure.

4.  Install in the reverse order of removal.
