REAR SEAT DISASSEMBLY/ASSEMBLY [5HB/WAGON]

id091300930100

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

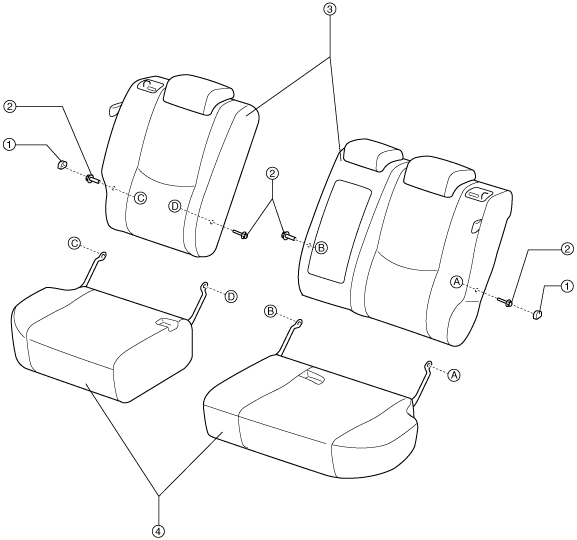

am6zzw00002758

1	Hinge cover
2	Bolt
3	Seat back
4	Rear seat cushion
