OCCUPANCY SENSOR INSPECTION

id091300998800

1.  Disconnect the occupancy sensor connector.

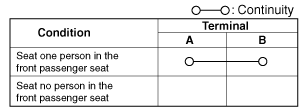

2.  Verify that the continuity between the occupancy sensor terminals is as indicated in the table.

am6zzw00007234

•  If not as indicated in the table, replace the passenger side front seat cushion pad. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

am6zzw00000992
