DOOR LOCK STRIKER REMOVAL/INSTALLATION

id091400430300

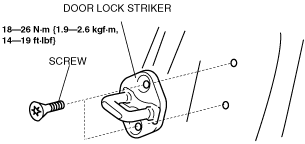

1.  Remove the screws, then remove the door lock striker.

am2zzw00000711

2.  Install in the reverse order of removal.

3.  Adjust the door lock striker. (See DOOR ADJUSTMENT.)
