REAR OUTER HANDLE REMOVAL/INSTALLATION

id091400432600

1.  Fully close the rear door glass.

2.  Disconnect the negative battery cable.

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove the rubber.

am6zzw00000383

5.  Remove the service hole cover.

am6zzw00000384

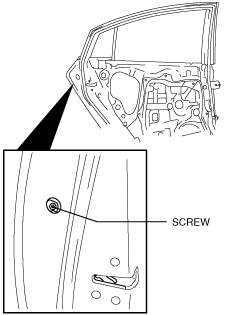

6.  Remove the screw from the service hole.

am6zzw00000385

Note

•  The screw cannot be removed because of the stopper.

7.  Press the tab on the rear outer handle bracket in the direction of the arrow.

am6zzw00000386

8.  Maintaining the condition in procedure 7, remove the outer handle garnish.

am2zzw00000633

9.  Press the hook on the rear outer handle bracket in the direction of the arrow.

am6zzw00000387

10.  Maintaining the condition in procedure 9, remove the rear outer handle.

am2zzw00000635

11.  Remove the handle seat.

am6zzw00001404

12.  Loosen the screw.

am6zzw00000388

13.  Press down the rod holder in the direction of arrow (1) and remove the rear outer handle bracket in the direction of arrow (2).(See Outer handle bracket Installation Note.)

am6zzw00000389

14.  Install in the reverse order of removal.

Outer handle bracket Installation Note

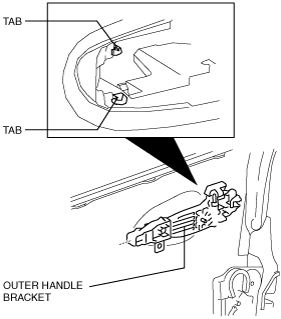

1.  Hook the outer handle bracket tabs as shown in the figure.

am6zzw00001406
