LIFTGATE LATCH MANUAL RELEASE PROCEDURE

id091400444100

5HB

Note

•  If the liftgate cannot be unlocked or opened due to a discharged battery or malfunction in the electrical system, it can be opened using the following procedure.

Opening the liftgate

1.  Fold down the rear seat back.

2.  Open the cap.

am6zzw00002533

Caution

•  Wear gloves when performing the procedure. The body edge can injure bare hands.

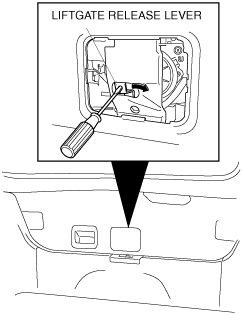

3.  Move the lever shown in the figure to the right to unlock the liftgate.

am6zzw00006961

WGN

Note

•  If the liftgate cannot be unlocked or opened due to a discharged battery or malfunction in the electrical system, it can be opened using the following procedure.

Opening the liftgate

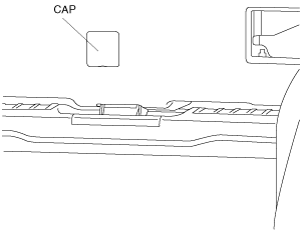

1.  Open the cap.

am6zzw00003396

Caution

•  Wear gloves when performing the procedure. The body edge can injure bare hands.

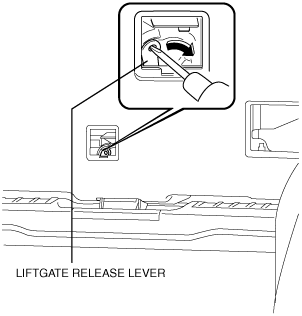

2.  Move the lever shown in the figure to the right to unlock the liftgate.

am6zzw00006962
